1
2
3
4
5
6
7

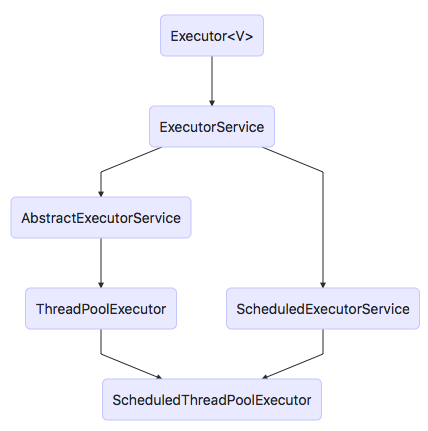

graph TB
e(Executor<V>)-->es(ExecutorService)
es-->se(ScheduledExecutorService)
es-->aes(AbstractExecutorService)
aes-->tpe(ThreadPoolExecutor)
tpe-->ste(ScheduledThreadPoolExecutor)
se-->ste
ExecutorService
一个运行新任务的简单接口。
ExecutorService，扩展了Executor接口。添加了一些用来管理执行器生命周期和任务生命周期的方法。
可以通过java.util.concurrent.Executors类,提供了多个实例化线程的简易静态工厂方法,来创造ExecutorService的子类(一般是创建ThreadPoolExecutor/ScheduledExecutorService/ScheduledThreadPoolExecutor)
ScheduledExecutorService
继承了ExecutorService和Executor。支持Future和定期执行任务。
AbstractExecutorService
ThreadPoolExecutor
实现了ExecutorService,所以才能够这么玩
1
2
3
4
5
6
7
//guava
ThreadFactory factory = new ThreadFactoryBuilder().setNameFormat("ExecutorServiceExample-%d").build();
ExecutorService executor = new ThreadPoolExecutor(1,
200,
0L,
TimeUnit.DAYS,
new LinkedBlockingDeque<Runnable>(1024),factory);
ScheduledThreadPoolExecutor
从上图的继承树就可以看出,ScheduledThreadPoolExecutor通过继承ScheduledExecutorService接口实现了其特性,多出了一个awaitTermination方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Runnable runnabledelayedTask = new Runnable() {
@Override
public void run() {
System.out.println(Thread.currentThread().getName() + " is Running Delayed Task");
}
};
Callable callabledelayedTask = new Callable() {
@Override
public String call() throws Exception {
return "GoodBye! See you at another invocation...";
}
};
ScheduledExecutorService scheduledPool = Executors.newScheduledThreadPool(4);
scheduledPool.scheduleWithFixedDelay(runnabledelayedTask, 1, 1, TimeUnit.SECONDS);
ScheduledFuture sf = scheduledPool.schedule(callabledelayedTask, 4, TimeUnit.SECONDS);
String value = (String) sf.get();
System.out.println("Callable returned" + value);
scheduledPool.shutdown();
System.out.println("Is ScheduledThreadPool shutting down? " + scheduledPool.isShutdown());
1
2
3
4
5
6
7
graph TB
e(Executor<V>)-->es(ExecutorService)
es-->se(ScheduledExecutorService)
es-->aes(AbstractExecutorService)
aes-->tpe(ThreadPoolExecutor)
tpe-->ste(ScheduledThreadPoolExecutor)
se-->ste
ExecutorService
A simple interface for running new tasks.
ExecutorService extends the Executor interface. Adds some methods for managing executor lifecycle and task lifecycle.
You can use the java.util.concurrent.Executors class, which provides multiple simple static factory methods for instantiating threads, to create subclasses of ExecutorService (generally creating ThreadPoolExecutor/ScheduledExecutorService/ScheduledThreadPoolExecutor).
ScheduledExecutorService
Inherits ExecutorService and Executor. Supports Future and periodic task execution.
AbstractExecutorService
ThreadPoolExecutor
Implements ExecutorService, so it can be used this way.
1
2
3
4
5
6
7
//guava
ThreadFactory factory = new ThreadFactoryBuilder().setNameFormat("ExecutorServiceExample-%d").build();
ExecutorService executor = new ThreadPoolExecutor(1,
200,
0L,
TimeUnit.DAYS,
new LinkedBlockingDeque<Runnable>(1024),factory);
ScheduledThreadPoolExecutor
From the inheritance tree in the diagram above, we can see that ScheduledThreadPoolExecutor implements its features by inheriting the ScheduledExecutorService interface, adding an awaitTermination method.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Runnable runnabledelayedTask = new Runnable() {
@Override
public void run() {
System.out.println(Thread.currentThread().getName() + " is Running Delayed Task");
}
};
Callable callabledelayedTask = new Callable() {
@Override
public String call() throws Exception {
return "GoodBye! See you at another invocation...";
}
};
ScheduledExecutorService scheduledPool = Executors.newScheduledThreadPool(4);
scheduledPool.scheduleWithFixedDelay(runnabledelayedTask, 1, 1, TimeUnit.SECONDS);
ScheduledFuture sf = scheduledPool.schedule(callabledelayedTask, 4, TimeUnit.SECONDS);
String value = (String) sf.get();
System.out.println("Callable returned" + value);
scheduledPool.shutdown();
System.out.println("Is ScheduledThreadPool shutting down? " + scheduledPool.isShutdown());
1
2
3
4
5
6
7
graph TB
e(Executor<V>)-->es(ExecutorService)
es-->se(ScheduledExecutorService)
es-->aes(AbstractExecutorService)
aes-->tpe(ThreadPoolExecutor)
tpe-->ste(ScheduledThreadPoolExecutor)
se-->ste
ExecutorService
新しいタスクを実行するためのシンプルなインターフェース。
ExecutorServiceはExecutorインターフェースを拡張します。エグゼキューターのライフサイクルとタスクのライフサイクルを管理するためのいくつかのメソッドを追加します。
java.util.concurrent.Executorsクラスを使用して、スレッドをインスタンス化するための複数の簡単な静的ファクトリメソッドを提供し、ExecutorServiceのサブクラス（通常はThreadPoolExecutor/ScheduledExecutorService/ScheduledThreadPoolExecutorを作成）を作成できます。
ScheduledExecutorService
ExecutorServiceとExecutorを継承します。Futureと定期的なタスク実行をサポートします。
AbstractExecutorService
ThreadPoolExecutor
ExecutorServiceを実装しているため、このように使用できます。
1
2
3
4
5
6
7
//guava
ThreadFactory factory = new ThreadFactoryBuilder().setNameFormat("ExecutorServiceExample-%d").build();
ExecutorService executor = new ThreadPoolExecutor(1,
200,
0L,
TimeUnit.DAYS,
new LinkedBlockingDeque<Runnable>(1024),factory);
ScheduledThreadPoolExecutor
上の図の継承ツリーから、ScheduledThreadPoolExecutorがScheduledExecutorServiceインターフェースを継承することでその機能を実装し、awaitTerminationメソッドを追加していることがわかります。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Runnable runnabledelayedTask = new Runnable() {
@Override
public void run() {
System.out.println(Thread.currentThread().getName() + " is Running Delayed Task");
}
};
Callable callabledelayedTask = new Callable() {
@Override
public String call() throws Exception {
return "GoodBye! See you at another invocation...";
}
};
ScheduledExecutorService scheduledPool = Executors.newScheduledThreadPool(4);
scheduledPool.scheduleWithFixedDelay(runnabledelayedTask, 1, 1, TimeUnit.SECONDS);
ScheduledFuture sf = scheduledPool.schedule(callabledelayedTask, 4, TimeUnit.SECONDS);
String value = (String) sf.get();
System.out.println("Callable returned" + value);
scheduledPool.shutdown();
System.out.println("Is ScheduledThreadPool shutting down? " + scheduledPool.isShutdown());
1
2
3
4
5
6
7
graph TB
e(Executor<V>)-->es(ExecutorService)
es-->se(ScheduledExecutorService)
es-->aes(AbstractExecutorService)
aes-->tpe(ThreadPoolExecutor)
tpe-->ste(ScheduledThreadPoolExecutor)
se-->ste
ExecutorService
Простой интерфейс для запуска новых задач.
ExecutorService расширяет интерфейс Executor. Добавляет некоторые методы для управления жизненным циклом исполнителя и жизненным циклом задач.
Вы можете использовать класс java.util.concurrent.Executors, который предоставляет несколько простых статических фабричных методов для создания экземпляров потоков, для создания подклассов ExecutorService (обычно создание ThreadPoolExecutor/ScheduledExecutorService/ScheduledThreadPoolExecutor).
ScheduledExecutorService
Наследует ExecutorService и Executor. Поддерживает Future и периодическое выполнение задач.
AbstractExecutorService
ThreadPoolExecutor
Реализует ExecutorService, поэтому может использоваться таким образом.
1
2
3
4
5
6
7
//guava
ThreadFactory factory = new ThreadFactoryBuilder().setNameFormat("ExecutorServiceExample-%d").build();
ExecutorService executor = new ThreadPoolExecutor(1,
200,
0L,
TimeUnit.DAYS,
new LinkedBlockingDeque<Runnable>(1024),factory);
ScheduledThreadPoolExecutor
Из дерева наследования на диаграмме выше видно, что ScheduledThreadPoolExecutor реализует свои функции, наследуя интерфейс ScheduledExecutorService, добавляя метод awaitTermination.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Runnable runnabledelayedTask = new Runnable() {
@Override
public void run() {
System.out.println(Thread.currentThread().getName() + " is Running Delayed Task");
}
};
Callable callabledelayedTask = new Callable() {
@Override
public String call() throws Exception {
return "GoodBye! See you at another invocation...";
}
};
ScheduledExecutorService scheduledPool = Executors.newScheduledThreadPool(4);
scheduledPool.scheduleWithFixedDelay(runnabledelayedTask, 1, 1, TimeUnit.SECONDS);
ScheduledFuture sf = scheduledPool.schedule(callabledelayedTask, 4, TimeUnit.SECONDS);
String value = (String) sf.get();
System.out.println("Callable returned" + value);
scheduledPool.shutdown();
System.out.println("Is ScheduledThreadPool shutting down? " + scheduledPool.isShutdown());
